Galaxy PAC 400 Electric Paper & Card Creasing Machine

A Creasing and Perforating Machine is used to create precise folds (creases) and perforations on paper, cardstock, and other materials. Here's how it typically works:

1. **Loading and Setup:** The operator sets up the machine by adjusting various parameters such as the position and depth of the crease or perforation. These settings are adjusted using knobs, and digital controls on the machine. The operator also loads the material to be processed, either individually for semi-auto machines or in stacks for auto machines.

2. **Feeding Mechanism:** For semi-auto mach

ines, the operator manually feeds one sheet at a time into the machine's feeding mechanism. For auto machines, a feeding system pulls sheets from the stack one by one and passes them through the machine.

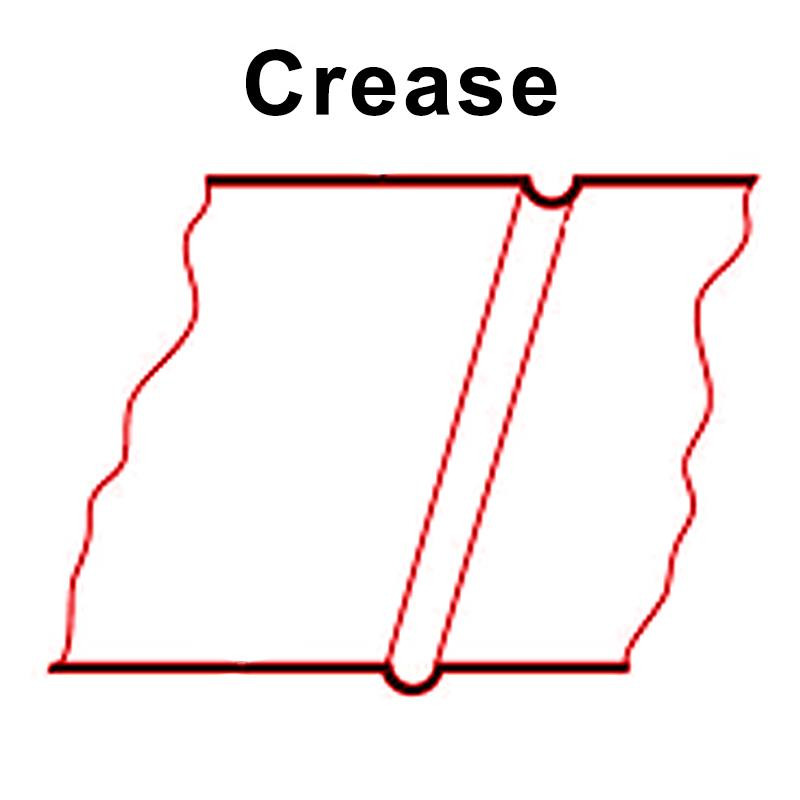

3. **Creasing Process:** The creasing mechanism in the machine consists of a creasing blade or wheel that applies pressure along the intended crease line. This pressure creates a partial indentation on the material without cutting through it. The goal is to weaken the fibers along the crease line, making it easier to fold the material accurately and neatly.

4. **Perforating Process:** The perforating mechanism typically uses a perforation blade or wheel with small, sharp teeth. These teeth create a series of closely spaced holes along the intended perforation line. The holes weaken the material, allowing it to be easily torn along the perforation line while still keeping the overall integrity of the sheet.

5. **Output:** After passing through the creasing and perforating mechanisms, the processed material is discharged from the machine. For auto machines, this is done automatically as the feeding system continues to pull in and process sheets.

6. **Collection and Handling:** The operator collects the processed material from the output side of the machine. In the case of auto machines, this might involve managing the stack of processed material as it accumulates.

7. **Adjustments and Maintenance:** If needed, the operator can make further adjustments to the machine's settings to achieve the desired crease and perforation results. Additionally, regular maintenance such as cleaning, blade replacement, and lubrication might be required to ensure the machine's optimal performance and longevity.

Overall, creasing and perforating machines work by applying pressure or cutting actions to the material at specific points, creating creases and perforations that facilitate folding and tearing. These machines are commonly used in the printing and paper processing industries to produce items like brochures, greeting cards, tickets, and packaging materials with neatly folded and easily tearable sections.

Semi Auto and Auto Creasing and Perforating Machines are both used in the printing and paper processing industries to create creases and perforations on paper, cardstock, and other materials. These processes are commonly used in activities such as creating folds for brochures, cards, and packaging, as well as adding tear-off sections like coupons. Here's the difference between the two types of machines:

1. **Semi Auto Creasing and Perforating Machine:** A semi-automatic creasing and perforating machine requires some manual intervention during the operation. These machines have a manual feed mechanism where the operator places the paper or material onto the machine's platform. Once the material is correctly positioned, the operator initiates the creasing or perforating process, by pressing the start button. The operator needs to feed each sheet of paper individually. The machine then performs the creasing or perforating action automatically, based on the pre-set parameters.

2. **Auto Creasing and Perforating Machine:** An automatic creasing and perforating machine operates without requiring constant manual input for every sheet. These machines are equipped with automated feeding systems, which can handle larger stacks of paper or materials. The operator loads a stack of material into the machine's input tray, sets the required parameters (such as crease/perforation positions and depths), and initiates the machine. The machine then automatically feeds, creases, and perforates each sheet in the stack according to the provided settings.

Auto machines are more efficient for high-volume operations where large quantities of material need to be processed rapidly. They reduce the need for constant monitoring and manual intervention. In summary, the main difference between semi-auto and auto creasing and perforating machines lies in the level of automation and manual involvement required. Semi-auto machines need manual feeding, while auto machines handle larger stacks with automated feeding and processing. The choice between the two depends on the scale of the operation, and the desired level of efficiency.

With the standard machine the PAC 400, 4 creasing wheels are included, and you can create up to 4 creases in a single pass. However, it's valuable to know that you have the option to customise your machine by purchasing additional rollers and wheels, allowing you to increase the number of creases in a single pass up to the machine's specified maximum capacity.

This custom feature provides flexibility and versatility, allowing you to tailor the machine's configuration to meet the specific requirements of your projects. customising your machine can help you achieve the desired results efficiently.

The ease of changing between crease and perforating blades on the Galaxy Semi-Auto Crease and Perforating Machine can vary depending on the job. It offers relatively simple blade-changing processes. Here are some general steps you can expect when changing between crease and perforating blades:

1. **Turn Off the Machine:** Always start by turning off the machine and unplugging it from the power source to ensure safety during blade replacement.

2. **Access the Blade Compartment:** Open the cover / access panel that provides access to the blade compartment.

3. **Remove the Current Blade:** Release the wheel by removing the 3 grub screw with the allan key provided. Carefully remove the current creasing or perforating blade and set it aside.

4. **Install the New Blade:** Take the new crease or perforating blade and securely attach it in place with the 3 grub screws. Ensure that it is properly aligned along the ruled lines insuring that the creasing blade is aligned with the lower creasing rollers or in the case of perforating the nylon perf roller.

5. **Setting the Depth of Crease** Use the allen key again on the depth grub screw in a clock ways direct to increase the desired crease depth

6. **Reassemble the Blade Compartment:** Close and secure the blade compartment cover or panel, making sure it is firmly in place. And the safety switch is engaged

7. **Power On and Test:** Plug in the machine, turn it on, and perform a test run to ensure that the new blade is working correctly and producing the desired creases or perforations.

It's essential to consult the machine's user manual or operating instructions. These documents will provide specific guidance on changing blades for your particular model. Additionally, be cautious when handling sharp blades, and consider using safety gloves to protect your hands during the blade-changing process.

If you're unsure about changing blades or have concerns about the process, it's a good idea to reach out for support or seek assistance ensuring that it is done correctly and safely.

Yes, you can purchase additional blades and rollers for the Galaxy Pac Range Semi-Auto Crease / Perforating Machine. These additional accessories allow you to customise your machine for different creasing patterns, and perforation styles, or to replace worn-out or damaged parts. Check our parts section of the website.
