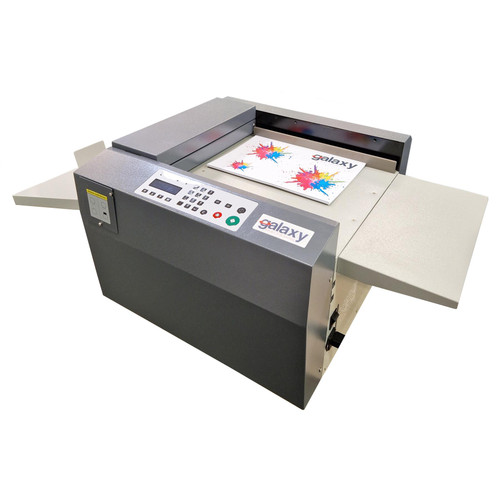

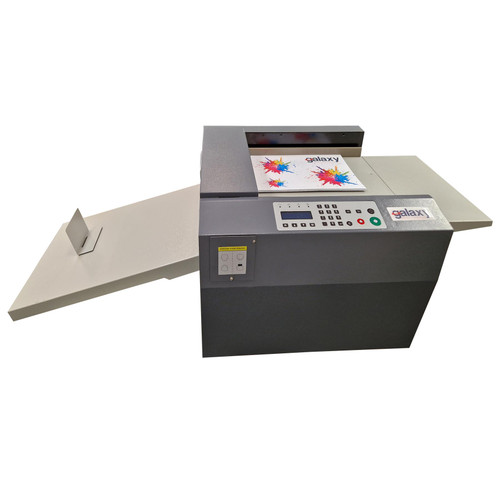

Galaxy iCAP 250 Semi Auto Crease and Perforating Machine

The Creasing and Perforating Machine is used to create precise folds (creases) and perforations on paper, cardstock, and other materials. Here's how it typically works:

1. **Loading and Setup:**

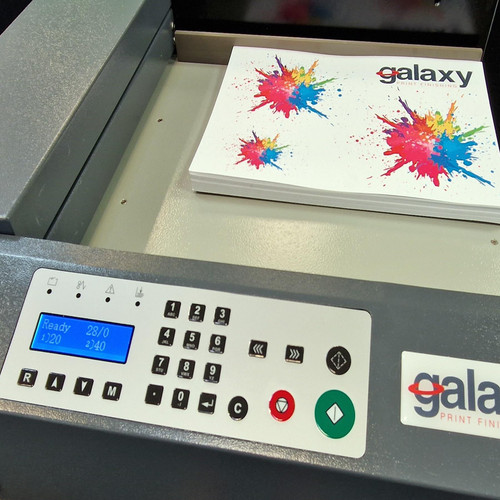

The operator sets up the machine by adjusting various parameters such as the position and depth of the crease or perforation. These settings are adjusted using knobs, and digital controls on the machine. The operator also loads the material to be processed, either individually for semi-auto machines or in stacks for auto machines.

2. **Feeding Mechanism:**
For semi-auto machines, the operator manually feeds one sheet at a time into the machine's feeding mechanism. For auto machines, a feeding system pulls sheets from the stack one by one and passes them through the machine.

3. **Creasing Process:**
The creasing mechanism in the machine consists of a creasing blade or wheel that applies pressure along the intended crease line. This pressure creates a partial indentation on the material without cutting through it. The goal is to weaken the fibers along the crease line, making it easier to fold the material accurately and neatly.

4. **Perforating Process:**

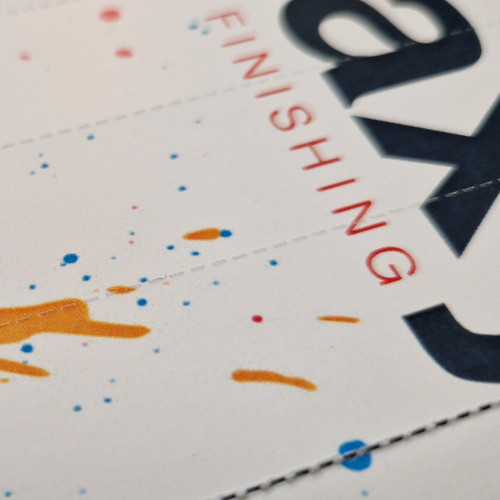

The perforating mechanism typically uses a perforation blade or wheel with small, sharp teeth. These teeth create a series of closely spaced holes along the intended perforation line. The holes weaken the material, allowing it to be easily torn along the perforation line while still keeping the overall integrity of the sheet.

5. **Output:**
After passing through the creasing and perforating mechanisms, the processed material is discharged from the machine. For auto machines, this is done automatically as the feeding system continues to pull in and process sheets.

6. **Collection and Handling:**
The operator collects the processed material from the output side of the machine. In the case of auto machines, this might involve managing the stack of processed material as it accumulates.

7. **Adjustments and Maintenance:**
If needed, the operator can make further adjustments to the machine's settings to achieve the desired crease and perforation results. Additionally, regular maintenance such as cleaning, blade replacement, and lubrication might be required to ensure the machine's optimal performance and longevity.

Overall, creasing and perforating machines work by applying pressure or cutting actions to the material at specific points, creating creases and perforations that facilitate folding and tearing. These machines are commonly used in the printing and paper processing industries to produce items like brochures, greeting cards, tickets, and packaging materials with neatly folded and easily tearable sections.

Absolutely, setting up the iCAP 250 is a straightforward process made even more accessible by the included manuals. These manuals are designed to guide you through each step of the setup with ease. They offer comprehensive, step-by-step directions on how to adjust settings, load materials, and execute basic operations. The provided clear and well-structured documentation is a key factor in simplifying the setup process, ensuring that users, regardless of experience level, can confidently prepare the iCAP 250 for operation. Furthermore, the addition of video guides further enhances the setup experience by providing visual demonstrations and assistance at every stage of the process. This combination of written and visual resources guarantees that you'll be well-equipped to seamlessly configure the iCAP 250 according to your requirements.

This machine allows you to create up to 32 creases or perforations in a single pass.

Semi Auto and Auto Creasing and Perforating Machines are both used in the printing and paper processing industries to create creases and perforations on paper, cardstock, and other materials. These processes are commonly used in activities such as creating folds for brochures, cards, and packaging, as well as adding tear-off sections like coupons.
Here's the difference between the two types of machines:

1. **Semi Auto Creasing and Perforating Machine:**
A semi-automatic creasing and perforating machine requires some manual intervention during the operation. These machines have a manual feed mechanism where the operator places the paper or material onto the machine's platform. Once the material is correctly positioned, the operator initiates the creasing or perforating process, by pressing the start button. The operator needs to feed each sheet of paper individually. The machine then performs the creasing or perforating action automatically, based on the pre-set parameters.

2. **Auto Creasing and Perforating Machine:**
An automatic creasing and perforating machine operates without requiring constant manual input for every sheet. These machines are equipped with automated feeding systems, which can handle larger stacks of paper or materials. The operator loads a stack of material into the machine's input tray, sets the required parameters (such as crease/perforation positions and depths), and initiates the machine. The machine then automatically feeds, creases, and perforates each sheet in the stack according to the provided settings.

Auto machines are more efficient for high-volume operations where large quantities of material need to be processed rapidly. They reduce the need for constant monitoring and manual intervention.
In summary, the main difference between semi-auto and auto creasing and perforating machines lies in the level of automation and manual involvement required. Semi-auto machines need manual feeding, while auto machines handle larger stacks with automated feeding and processing. The choice between the two depends on the scale of the operation, and the desired level of efficiency.

Absolutely, the process of transitioning between creasing and perforating modes is designed to be simple and efficient. Here's how you can effortlessly switch between the two:

To switch from creasing to perforating:

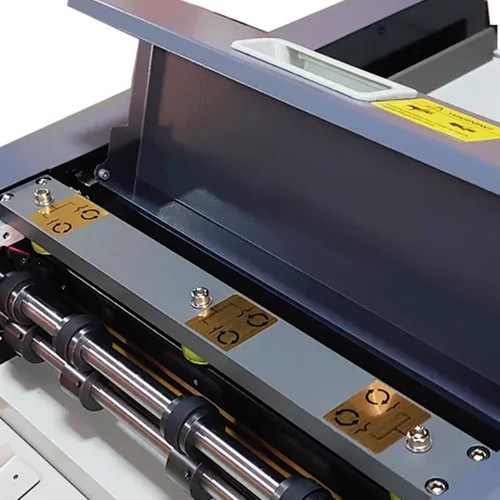

- Slide out the two crease blades from their current position on the machine.
- Install the perforation blades by sliding them into the designated position.
- The crease blades can be conveniently stored in the storage compartment area for safekeeping.

This user-friendly method ensures a smooth transition between creasing and perforating tasks, allowing you to efficiently achieve the desired results.

Here's an expanded section highlighting some of its key applications:
The Galaxy iCAP 250 Semi-Auto Card Creasing and Perforating Machine is not just a one-trick pony – it's a versatile solution that empowers you to take your creativity and productivity to new heights. Beyond its exceptional card creasing and perforating capabilities, this cutting-edge machine is your gateway to a multitude of applications:

1. **Folded Brochures:** Transform ordinary flat sheets into professional folded brochures that captivate and inform. Whether you're creating singe folds, z folds, or intricate multi-panel designs, the iCAP 250 ensures precise creasing for flawlessly folded brochures that make a lasting impression.

2. **Greeting Cards:** Greeting cards becomes a breeze. With the ability to handle varying cardstock thicknesses, the machine delivers perfect creases for folding, allowing you to create stunning and memorable cards for any occasion.

3. **Packaging Materials:** Elevate your packaging game with neatly creased and perforated materials. Design custom packaging solutions that not only protect your products but also enhance their visual appeal. The machine's precision ensures clean lines and easy tear-off sections for a seamless unboxing experience.

4. **Ticket Production:** Generate professional event tickets with ease. Whether you're organising concerts, conferences, or sporting events, the iCAP 250 lets you perforate tear-off sections cleanly, ensuring hassle-free entry for attendees.

5. **Invitations:** Craft elegant invitations that set the tone for your special event. With the ability to handle a wide range of paper sizes and thicknesses, this machine ensures that each invitation is flawlessly creased, creating a polished and sophisticated look.

6. **Educational Materials:** Create interactive educational materials with tear-out sections. Design workbooks, study guides, and interactive quizzes that engage learners and make learning enjoyable.

7. **Craft Projects:** Unleash your creativity with a tool that helps you bring your artistic visions to life. From intricate paper sculptures to interactive pop-up books, the iCAP 250 enables you to experiment and innovate with your craft projects.

8. **Menus and Price Lists:** Design menus for restaurants, cafes, and eateries with ease. The machine's ability to create clean creases and perforations ensures that customers can effortlessly navigate through your offerings.

9. **Direct Mail:** Enhance the impact of your direct mail campaigns. By adding creases and perforations, you can create engaging mailers that stand out and provide tear-off coupons or response cards.

The Galaxy iCAP 250 Semi-Auto Card Creasing and Perforating Machine isn't just a tool – it's a gateway to endless possibilities. With its adaptability, precision, and ease of use, you're empowered to explore various applications, impress your clients, and unleash your creativity like never before.
