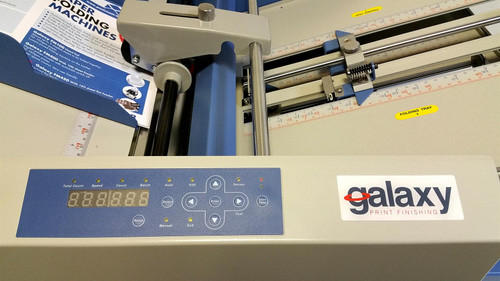

Galaxy PH45v (Wide) SRA3 paper Medical, Pharmaceutical Leaflet Folding Machine

MSRP:
Was:
Now: £10,348.62 (Inc. VAT)
MSRP:
Was:
Now: £8,623.85 (Ex. VAT)
(You save )
(No reviews yet) Write a Review

Get an Extra 5% off this week

Discount applied at checkout

Shipping:
Free UK Shipping!

Need Some Help?

Call us on 0161 883 2722

Description

The Galaxy PH45v (Wide) SA3 paper Medical, Pharmaceutical Paper Folding Machine enables you to perform multiple small folds for package inserts from as little as 24mm on 45 - 150gsm paper. This pharmacy folder is suitable for businesses that require small instructions/manuals to be folded prior to insertion into small product boxes. Other suitable businesses include those in the cosmetic, healthcare, production and parts markets/industries. Easy setup with multiple fold types that can also be customised for particular jobs requiring short miniature fold lengths. The PH45v is flat-friction fed using a 2 feed wheel system with thickness separator, for paper weights of 45 -150 gsm and paper sizes of min: 80mm x 100mm and max: 340mm x 540mm. The PH45v folder can produce 16 styles of set folds and custom folds from it's 4 fold plates and its smallest fold is 24mm with a high speed output of up to 12,000 leaflets per hour. It also has a creasing tool that will crease the folded document, so it can be inserted quickly and easily into your product carton. The PH45v has the additional premium vertical stacker that collects leaflets neatly at the end of the folding process. The stacker has a positive impact on productivity, reducing the time and effort required in collating the folded leaflets before placing them in product boxes.

Model: PH45v Medical, Pharmaceutical Folding Machine
Designed for: Commercial use
Paper size: Min: 80x100mm, Max: 340x540mm (including A6, A5, A4 & A3 SRA3)
Sheets per hour: Up to 12000
Feed tray capacity hopper: 150 sheets
Paper thickness gsm: 45 - 150
Paper feed tyres: 2 x rubber feed rollers
Automatic Feed: Yes
Feed type: Roller
Multiple sheets hand feed only: No
Conveyor for exiting paper: Yes with removable premium vertical stacker
Piece counter: Yes, with preset junction
Speed controller: Yes
Auto shut off when paper runs out: No
Jam detect and stop: Yes
Dimensions: W x D x H mm 1100 x 570 x 510
Weight: 59.1g
Warranty: 12 month manufacturers warranty. Extended warranty and ongoing maintenance available

SPECIFICATIONS

Suitable For: Commercial Grade Pharmaceutical Folding Machine
Paper Size: Min: 80x100mm - Max: 340x540mm
Paper Weight: 45 - 150gsm
Fold Types: 16 Fold Types plus Custom Folds
Cross Fold: Cross Crease Equipped
Sheets Per Minute: 200
Sheets Per Hour: 12000
Feed Tray Capacity: 150
Speed Controller: Yes
Piece Counter: Yes - With Batch Count
Feed Type: Friction
Hand or Automatic Feed: Automatic
Tyres: 2 x 20mm
Multiple Sheets (AKA Manual Bypass): No
Conveyor for Exiting Paper: Yes - with Premium Vertical Stacker
Auto Shut Off: Yes
Jam Detect: Yes with Error Codes
Reload Whilst Running: Yes
Dimensions W x D x H (mm): 1100 x 570 x 510
Weight (Kg): 59.1
Extended Warranty Maintenance Available: Technician Installation Included. Extended Service Available
Special Features 1: Small folds down to 38mm

Warranty Information

12 Months Back-to-Base, Onsite Available

Additional Details

SKU:
100690
